Finite element visualization.
veux logo. veux logo.
pip install veux

Simple
veux provides a simple Python interface that allows you to quickly render and animate complex structural simulations.

Fast
veux leverages state of the art rendering technologies like glTF to match like the performance metal APIs like VTK and OpenGL, but without the headache of FFIs.

Detailed
Unlike alternative tools that require supplementary cross-section information, veux is able to render details like extruded fiber sections without any information beyond what is available from OpenSees/OpenSeesPy.

Exact
veux offers support for geometrically exact simulations, and correctly handles finite rotations.

Gallery

Basics
rendering from an example
Learn the basics of drawing models.
Frames
rendering from an example
Render structural models with extruded sections.
Detailing
rendering from an example
.
Finite Rotations
rendering from an example
Render finite deformations in constrained members like Cosserat rods and shells.
Versatility
rendering from an example

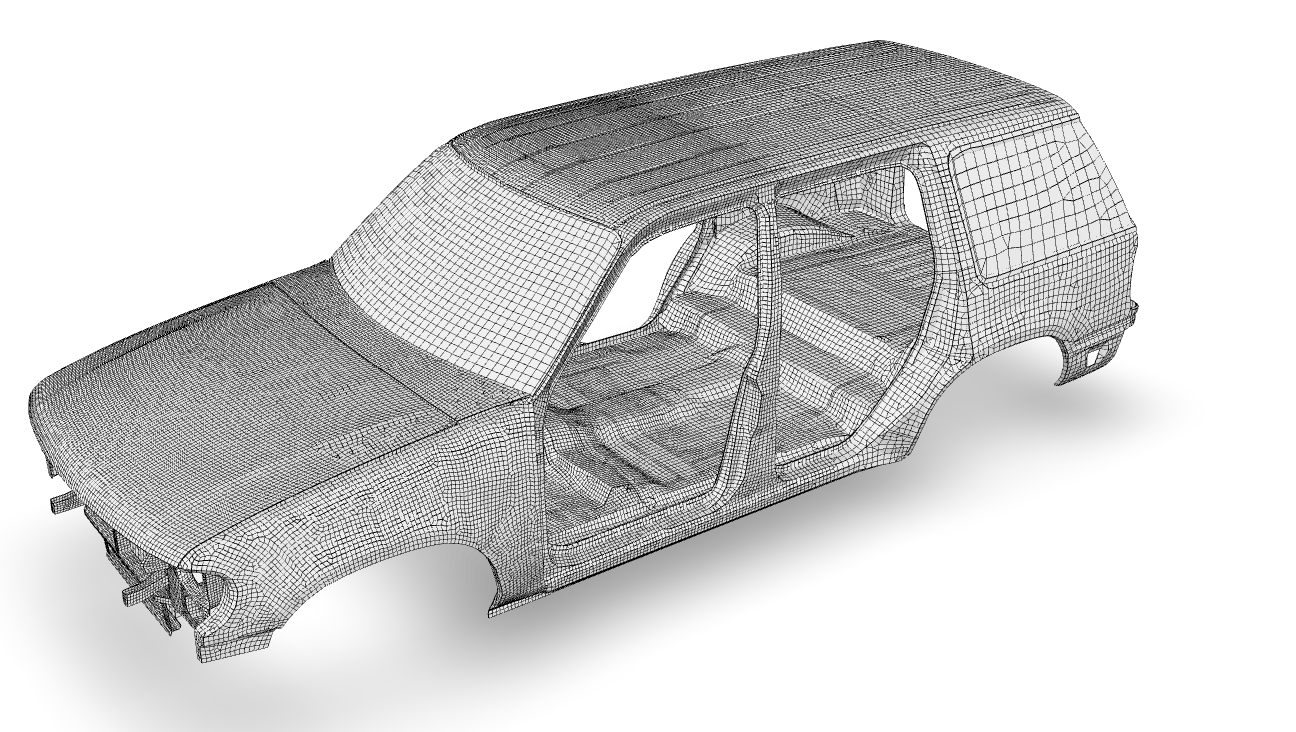

Import models from commercial platforms like ABAQUS.

Ecosystem

veux is a part of the larger STAIRLab ecosystem. STAIRLab is a research group at the University of California, Berkeley, that focuses on the development of computational tools for the analysis and design of structures and infrastructure systems.

mdof

Fast and friendly system identification.

xara

Framework for nonlinear finite element analysis of structures.

irie

An infrastructure resilience engine powering the BRACE2 platform for structural health monitoring.
